Camshaft Double Vanos Engine Timing Locking Tool For BMW M52TU/M54/M56 Master Set

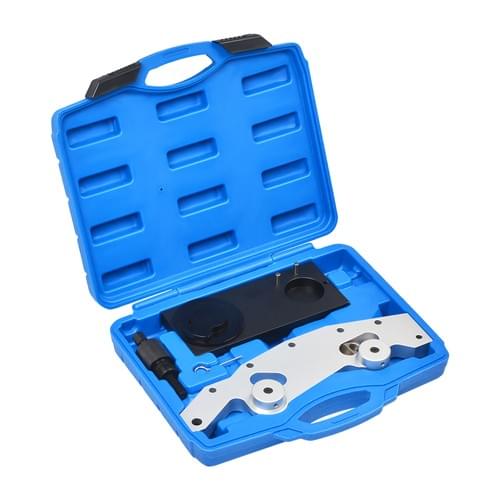

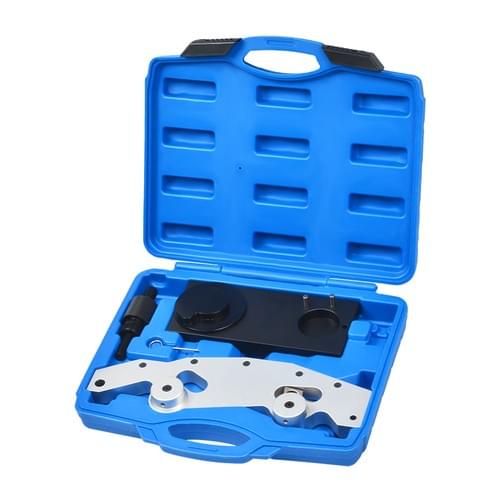

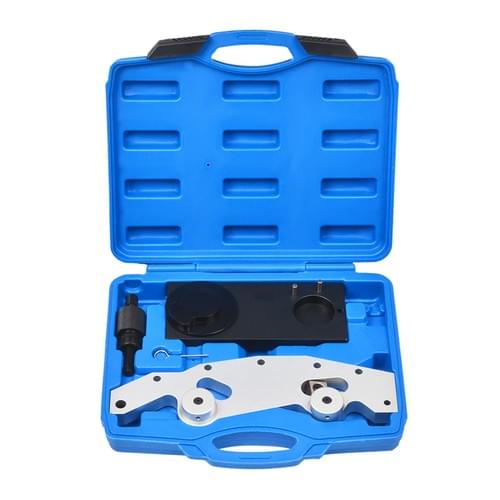

• Master tool set contains a comprehensive set of tools to perform camshaft timing on BMW M52TU, M54, M56 engines.  The kit includes the following:

• BMW Double VANOS Camshaft Alignment Tool M52TU M54 M56 6-cylinder engines utilized from 1998 onwards, Include:

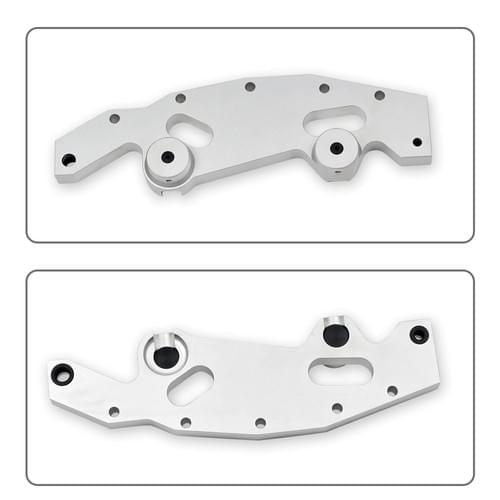

•    1) (ref.#116150) Alignment Jig:  Adjusting plate for setting valve timing on engine with double Vanos.

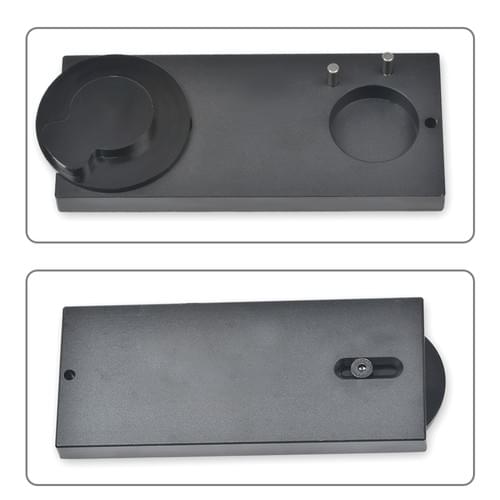

•    2) (ref.#116180) Sprocket Assembly Jig:  Use for preassembling secondary chain sprockets with chain on camshafts.

•    3) (ref.#114220) Rigid Chain Tensioner:  Use to tension primary chain.

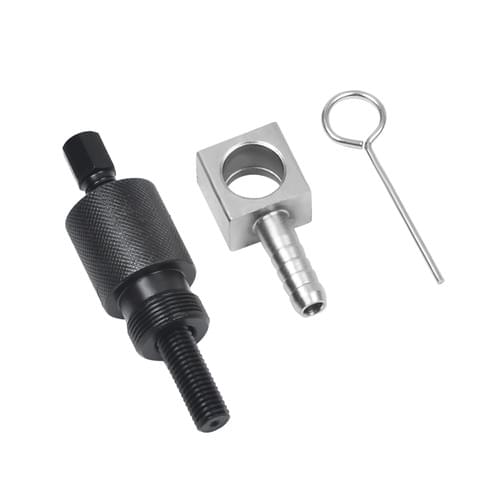

•    4) (ref.#113292) Chain Tensioner Lock Pin:  Locks chain tensioner during timing.

•    5) (ref.#113450) VANOS Compressed Air Connection:  Use to pressurize the single and double Vanos unit when checking or removing and replacing.

•    Applicable: BMW 6 cylinder engine: M52TU (1998-2000), M54 (2001-2004), & M56 (2003 to present).

• BMW 4 & 6 Cylinder Camshaft Alignment / Timing Tools. Include:

•    6) (ref.#113240) Camshaft Locking Fixture:  Aligns and holds the camshaft in position when assembling cylinder head and replacing timing chain.

•        Engines: M42, M44, M50, M52, M52TU, M54, M56, S50US, S52US.

•    7) (ref.#112300)Top Dead Center Pin:  Use to lock the flywheel at Top Dead Center when removing or replacing the camshafts or VANOS assemblies.

•        Engines: M42, M43, M44, M50, M52, M52TU, M54, M56, M60, M62, M70, M73, S50B30, S50B32, S54, S62.

•    8) (ref.#115490)VANOS Turning Wrench:  Use to adjust VANOS position on single VANOS engines when removing or installing.

•        Engines: M50, M52, S50US, S52US.

• Application Detail:
